N314T-8 1.4" Throat Size HF Device - Neodymium
The 1.4 in. exit N314T-8 sets a new standard in compression drivers from Eminence. Featuring D3 technology (Damped Diametric Drive), a 3 in. voice coil, and lightweight neodymium ring magnet with copper shorting ring, the N314T-8 offers an ultra-clean sound and low crossover point.
Specifications
Download Spec Sheet| SPECIFICATION | |
| Throat Size | 1.4", 35.6mm |
| Nominal Impedance* | 8Ω |
| Minimum Impedance | 6.7 ohm @ 3.7 kHz |
| Power Rating** | 100 W (AES) |
| Resonance | 0.55kHz |
| Usable Frequency Range | 800Hz-20kHz |
| Recommended Crossover | 800 Hz / 12 dBkHz |
| Sensitivity*** | 110.9 |
| Magnet Material | Neodymium |
| Magnet Weight | 11oz, 0.31kg |
| Voice Coil Diameter | 3" / 76.2mm |
| Voice Coil Former | Polyimide |
| Diaphragm Material | Titanium |
| DC Resistance (Re) | 4.8Ω |
| MOUNTING INFORMATION | |
| Overall Diameter | 5.72", 145.3mm |
| Driver Volume Displaced | 0.02 cu.ft., 0.66 liters |
| Depth | 2.53", 64.3mm |
| Weight | 4.8 lbs, 2.2 kg |
| Mounting Thread | N/A |
| Mounting Holes Diameter | 4X 1/4-20 |
| Mounting Holes B.C.D. | 4 in. 101.6 mm |

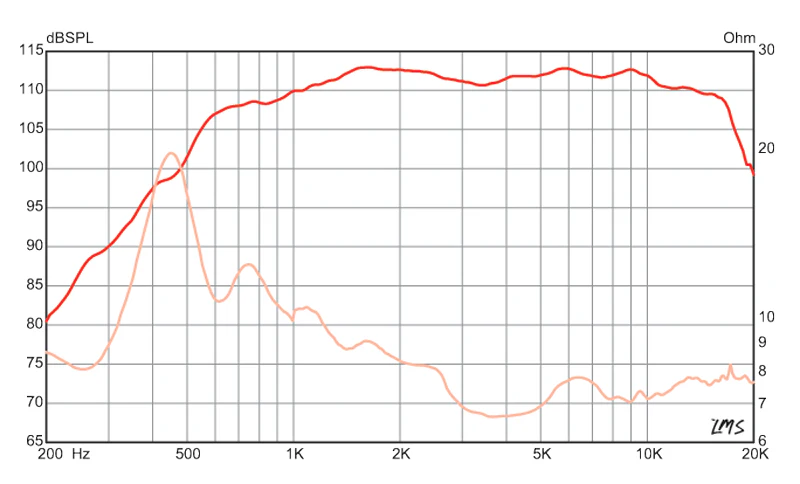

Frequency Response
