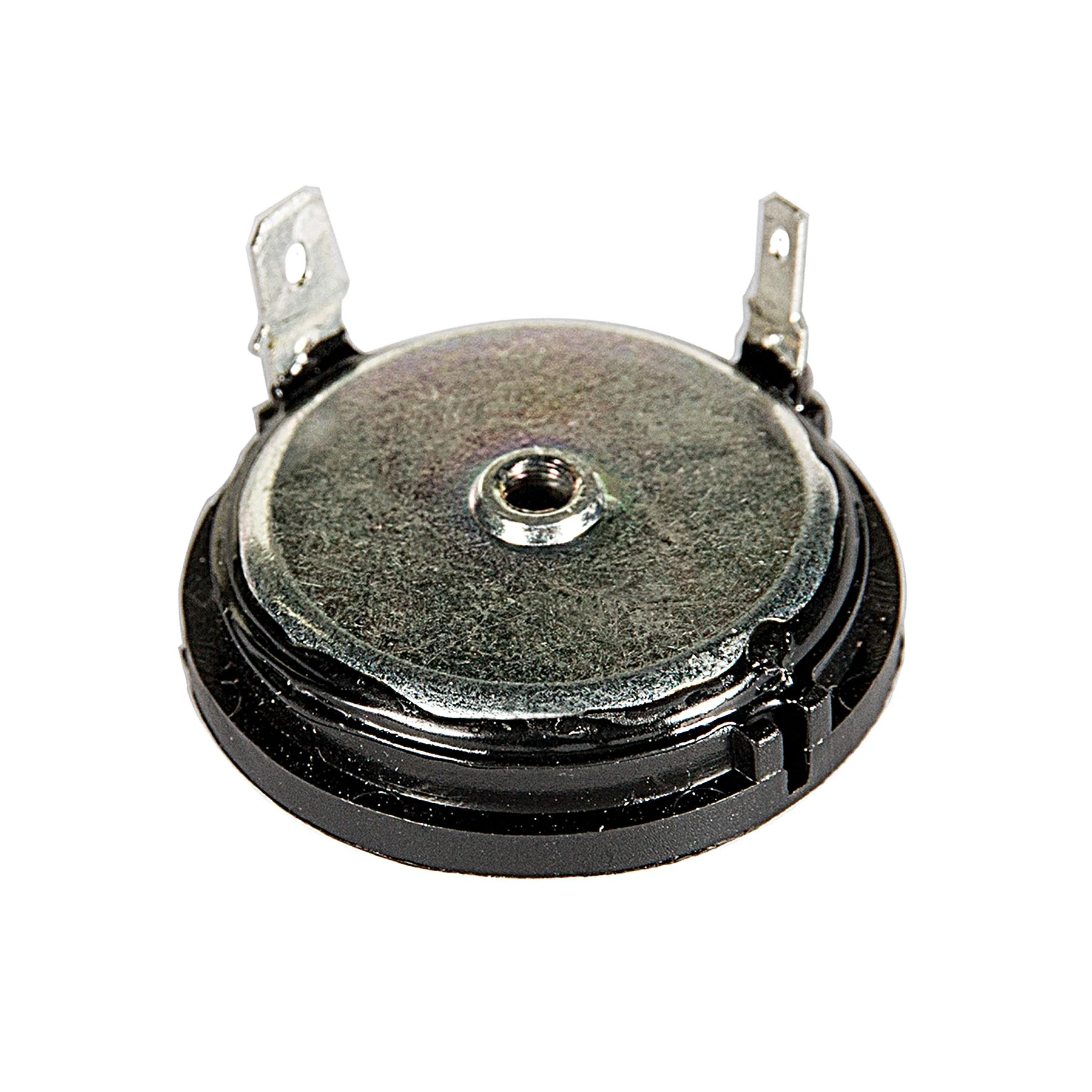

SD28 Soft Dome Tweeter
The Eminence SD28 soft-dome tweeter offers unmatched performance to value in an ultra-compact design. With an overall diameter of less than 1.5 inches, this 4-ohm silk dome tweeter delivers smooth high-frequency reproduction from 1.5 to 20 kHz. Perfect for home stereo, car audio, ATV, RV, or any other application where space is limited.
Specifications
| SPECIFICATION | |
| Type | N/A |
| Throat Size | ", mm |
| Dispersion | 60° |
| Power Rating | 10W (AES), 20W (EIA- |
| Nominal impedance | 4Ω |
| Minimum impedance | 3.5 Ω @ 4.4 kHz |
| Sensitivity | 92.5 dB |
| Resonance | 1.5 kHz |
| Usable Frequency Range | 1500 Hz – 20 kHz |
| Low Rec. Crossover | 1.5 kHz |
| W x H x D (in) | 1.48" x 1" x " |
| W x H x D (mm) | 37.6 x 25.4 x mm |
| Cut Out | Rear mount, |
| Weight | 0.1lbs, 0.05kg |
| Material | N/A |

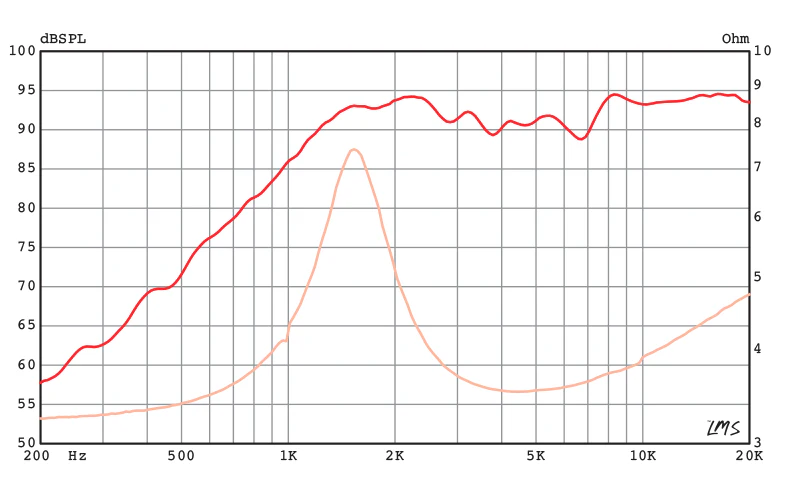

Frequency Response
